Water softener is the devise that reduce raw water hardness,.Dissolved Calcium and Magnesium in water, cause scaling in pipe work and boilers.Softener utilise high quality components to provide a continuous supply of softened water. This process uses base exchange resin to replace the hardness with sodium ions. We provide both simplex and duplex softeners along with brine tanks for commercial, industrial or domestic use. Simplex systems are used for batch production and Duplex units are used to provide a continuous supply of softened water.

Water softener is the device that reduce raw water hardness. Dissolved calcium and magnesium in water , Cause scaling

Thesofteners use composite vessels consisting of a polyethylene inner withFRPouter shellor stainless steel Vessel with inner paint,The vessel is complete with internal collection and distributors and filled with high grade base exchange resin. The units are fitted with multiport control valves which automatically draw in the brine solution used in the regeneration process. The vessels are usually connected with ABSor stainless steelpipe work and fittings.

The quantity of the softened water is constantly monitored by the water meter. The Simplex water softeners automatically regenerate when the set quantity of treated water has passed. The controller changes the standby softener to service before regenerating the exhausted resin before returning it to standby. The regeneration of the softener resin draws the brine solution from the combined brine tank/Salt saturator.

 Water soft processing

1.Working

Raw Water feed into the filter vessel which load cation resin under pressure 0.2-0.6MPa,Na+exchange with Ca2+, Mg2+,Fe2+ of the raw water, outlet water hardness reduced.

2.Back Wash

Water feed in to softener vessel from bottom and outlet from top,it is no only used for cleaning but also loosing the resin to make regeneration More efficient.

3.Regeneration

Use 4% NaCl solution,feed into softer vessel from bottom slowly to recovery resin exchange capacity. NaCl solution volume : Resin volume = 2:1

4.Slow Rinse

Feed water from top and outlet from bottom slowly to remove the NaCl solution which remain on the surface of resin .

5.Fast Resin

Feed water from top and outlet from bottom fastly to remove the NaCl solution which remain in the softener vessel.

Technical Parameter

Softener Operation Drawing as attached.

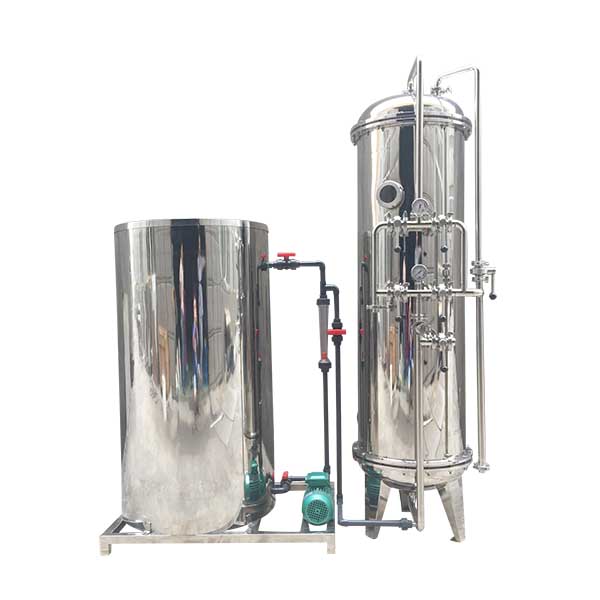

7T Softener Water System Drawing

Softener Vessel Size & Capacity Table

Soft Water Application

1.Electric power industrial, Boiler water

2.Metallurgical Industry

3.Food, Beverage, Bear,Pharmaceutical industrial

4.Chemical Industrial

5.Hotel,House,Mall air conditioner water

6.Laundry service
