Description :

Purified water plant is the water plant that produce purified water which used for pharmaceutical processing, hospital tools washing,WFI feeding water. Main machine designed RO unit, EDI unit, Ion exchange,Treated water meet GMP 2015.

Complete system include Pre-treatment, RO,EDI or ion exchange unit,Post-treatment, purified water distribution unit and electric control unit.

Based on different raw water and treated water quality request,we have following design to remove impurity, suspended substance,grain, colloid,silica,bacteria,virus,arsenic,

Iron,Manganese,calcium,magnesium and almost other ion from the water.

<1> RO+RO, Treated water conductivity≦2uS/cm@25oC

<2> RO+Mixed Bed, Treated water conductivity≦1uS/cm@25oC

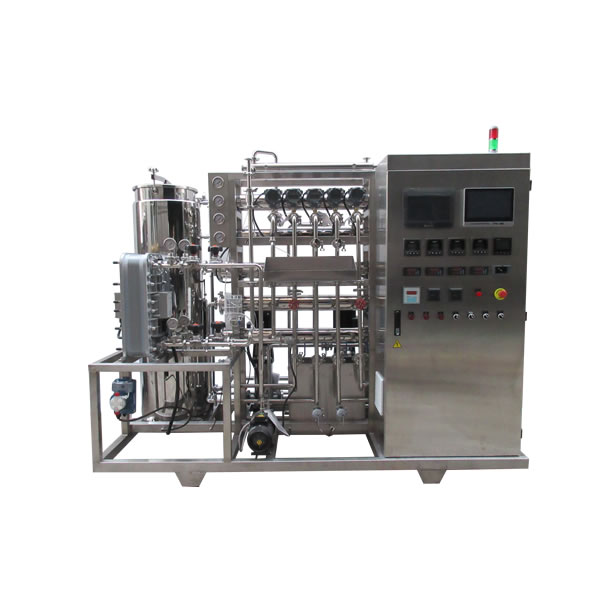

<3> RO+EDI, Treated water Resistivity≧10MΩ.cm@25oC

<4> RO+RO+EDI，Treated water Resistivity≧15MΩ.cm@25oC

<5> RO+RO+EDI+Polish Mixed bed，Treated water Resistivity≧18MΩ.cm@25oC

The system can use complete stainless steel material, Pre-treatment, Membrane Housing, Storage Tank, pipe and fitting all use stainless steel. Complete looks very nice and durable. Also can use FRP filter housing and membrane housing,it is economic and low cost.

Design and manufacture standard :

JB/T 2932-1999

GB/T19249-2003

GB5749-2006

HY/T068-2002

Drawing as attachment

Drawing as attachment 02

Technical Specification

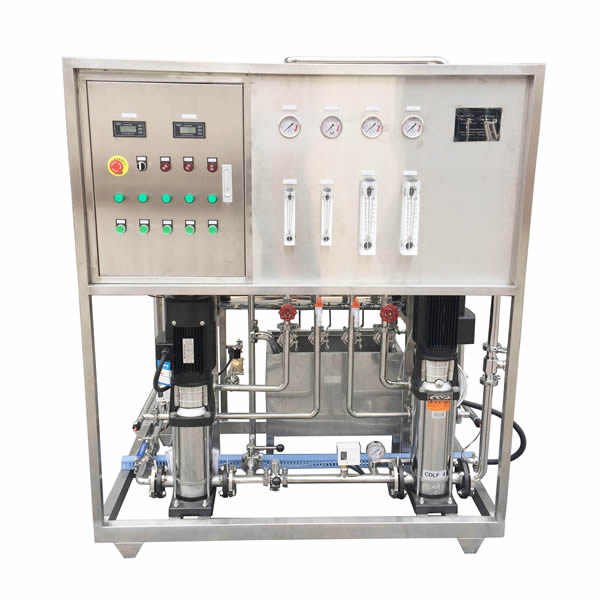

Double Stage RO System Characteristics

1.Reasonable design and reasonable interconnect piping,low power consumption,

Compact structure,save install space.easily disassembly and change consumption

Parts, and each for cleaning.

2.Pipe inner is smooth,no dead corner,easy for washing and sanitization.all the parts rust protection.

3. Only use high quality pump and RO membrane such as Grundfos, CNP pump, DOW,Hydranautics membrane,high desalination rate and high flow capacity, low consumption.

4. SIEMENS PLC programmable,according to the actual system design, make program to control complete system, data logger record running data, connect to computer and print out. User can check it any time.

5. Electric cabinet install blower and dust strainer,keep the electric parts working in clean and cool space,make sure the system working smooth without error.All the wire marked by number, it is easy to find out the fault if there is something wrong. Once it has, alert will start on the control panel, operator can shut down power supply quickly by push the emergency button.

6. Purified water loop system use SS316L high quality sanitary pipe and fitting, can be sanitization by hot water,O3and H2O2.

Purified Water System Double Stage RO Device Application

1.Hospital Medical Instruments washing

2.Pharmaceutical cleaning water

3.Medicine, Oral liquid,Syrup processing water, Medicine raw material washing water.

4.Manufacture pelleting wet water.adjustable ethanol consistence.

5.Electronic parts cleaning water,circuit board cleaning water.

6.Health care hemodialysis, biochemical analysis using water

7.WFI water, distiller feeding water
