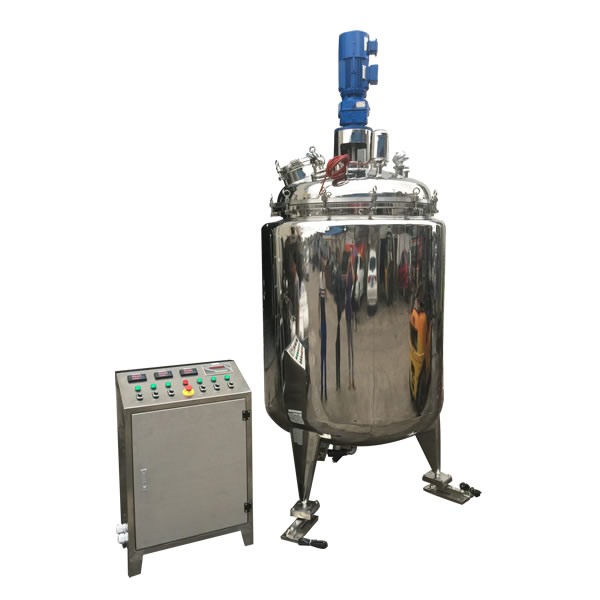

Steam Heat Dimple Jacket Mixing Storage Tank

Category : Stainless Steel Storage Tank
Email : [email protected]
Phone : +86-0577-86997731
Fax : +86-0577-86997731

Share to:

Description
Inquiry Us

Steam Heat Dimple Jacket Mixing Tank usually use high quality cold rolled SS 304 or SS316L as tank body ,end cap type of elliptical, dish or Conical with R angel, non-dead cornet,, totally make vertical style,varied mixing impeller,agitator motor install vertical or horizontal type, mixer speed 30-125rpm fixed frequency or adjustable by inverter, top assembled with outward open manhole, electric heating vent filter, sanitary spray ball. Inlet port always Tri-clamp or flange connection, sanitary silicon O-ring, seal good and non-leakage.

Tank Volume from 300L--20000L,we can make according to customer’s drawing or the actual installation space.

Structure Characteristics

1.3 Layer

2.Insulation layer : Polyurethane foam

3.Jacket layer : Dimple plate or coil pipe

4.Material of high quality stainless steel, provide material certificate.

5.Humanization design, reasonable installation and safety operation.

6.End cap with R angle, non-dead corner.

7.Inner mirror polish Ra<04, Surface finishing : Mirror or mat polish

8.Console model electric cabinet for mixer,temperature and level controlling

Assembly Parts:

1. Agitator

2. Top outward open manhole

3. Electric heating vent filter

4. Sanitary 360ospray ball

5. Thermometer and control gauge (Option)

6. Level switch and control gauge(Option)

7. Ladder (Option)

8. Spotlight (Option)

9. Height adjustable leg

Specification Data

Name	1000L Steam Heat Dimple Jacket Mixing Storage Tank
Volume	1000L
Agitator	1.1KW 110V-450V, 50Hz or 60Hz, 1 Phase or 3 Phase
Agitator Speed	0-215rpm controlled by inverter
Load cell	3 Piece each 1 Ton
Material	Media contact parts SS316L, Media Non-contact parts SS304
Media contact layer	4.0 mm
Jacket layer	1.5 mm
Outer layer	2.0mm
Insulation	Polyurethane foam
Tank body type	Cylindrical vertical
End cover Type	Ellipse
Working Pressure	Normal pressure
Inlet and outlet port size	Ø25 Clamp(Thread,Flange available）
Manhole	Ø400 outward open
Leg	3 Pieces
Foot	Height adjustable
Vent Filter	Stainless steel housing with 5 inch PTFE element
Spray ball	Ø25
Inner finishing	Mirror polishing Ra<0.4
Surface finishing	Mirror polishing,Mat or 2B

Drawing as attachment

Steam Heat Dimple Jacket Mixing Storage Tank Table

Capacity	A1 (mm)	A2 (mm)	A3 (mm)	B (mm)	C (mm)	D (mm)	End Cap Thickness ((mm)	Port (mm)	Motor Power
500L	Ø900X4.0	Ø1000X1.5	Ø1100X1.5	750	250	2150	4.0	Ø25	0.37KW
600L	Ø1000X4.0	Ø1100X1.5	Ø1200X1.5	750	250	2350	4.0	Ø25	0.55KW
1000L	Ø1000X4.0	Ø1100X1.5	Ø1200X1.5	1220	250	2800	4.0	Ø25	1.1KW
2000L	Ø1300X4.0	Ø1400X1.5	Ø1500X1.5	1500	250	3250	4.0	Ø25	1.1KW
3000L	Ø1600X4.0	Ø17000X1.5	Ø1800X1.5	1500	250	3450	4.0	Ø32	1.5KW
4000L	Ø1600X4.0	Ø1800X1.5	Ø1800X1.5	2000	300	4000	4.0	Ø32	1.5KW
5000L	Ø1800X4.0	Ø1900X1.5	Ø2000X1.5	2000	300	4100	4.0	Ø38	2.2KW
6000L	Ø1800X4.0	Ø1900X1.5	Ø2000X1.5	2350	300	4450	4.0	Ø38	2.2KW
8000L	Ø2000X4.0	Ø2100X1.5	Ø2200X1.5	2500	300	4750	4.0	Ø51	3.0KW
10000L	Ø2000X5.0	Ø2100X1.5	Ø2200X1.5	3000	300	5250	5.0	Ø51	4.0KW
12000L	Ø2000X5.0	Ø2100X1.5	Ø2200X1.5	3660	300	5900	5.0	Ø63	5.5KW
15000L	Ø2000X6.0	Ø2100X1.5	Ø2200X1.5	4880	300	7100	6.0	Ø76	7.5KW
We can manufacture based on customer’s design,or we design according to the actual condition such as room size, material,diameter,height,thickness,heater power and so on.

Application :

1.Water,Fruit Juice,Tea,Syrup heat and storage

2.Emulsion,Glue sauce heat and storage

3.Cosmetics,Vitamin heat and storage

4.Paint,pigment,dyestuff,paper making processing

5.Dairy, Beverage,Pharmaceutical liquid processing

6.Chemical industrial and biological engineering
