Single Layer Mixing Storage Tank

Single or jacket mixing tank usually use high quality cold rolled SS 304 or SS316L as tank body ,end cap type of elliptical, dish or Conical with R angel, non-dead cornet,

Category : Stainless Steel Storage Tank
Email : [email protected]
Phone : +86-0577-86997731
Fax : +86-0577-86997731

Share to:

Description
Inquiry Us

Single or jacket mixing tank usually use high quality cold rolled SS 304 or SS316L as tank body ,end cap type of elliptical, dish or Conical with R angel, non-dead cornet,, totally make vertical style,varied mixing impeller,agitator motor install vertical or horizontal type, mixer speed 30-125rpm fixed frequency or adjustable by inverter, top assembled with outward open manhole, electric heating vent filter, sanitary spray ball. Inlet port always Tri-clamp or flange connection, sanitary silicon O-ring, seal good and non-leakage.

Tank Volume from 300L--20000L,we can make according to customer’s drawing or the actual installation space.

Structure Characteristics

1.Single layer, double layer or 3 Layer available

2.Insulation layer : Polyurethane foam

3.Jacket layer : Dimple plate or coil pipe

4.Material of high quality stainless steel, provide material certificate.

5.Humanization design, reasonable installation and safety operation.

6.End cap with R angle, non-dead corner.

7.Inner mirror polish Ra<04, Surface finishing : Mirror or mat polish

8.Console model electric cabinet for mixer,temperature and level controlling

Assembly Parts:

1. Agitator

2. Top outward open manhole

3. Electric heating vent filter

4. Sanitary 360ospray ball

5. Thermometer and control gauge (Option)

6. Level switch and control gauge(Option)

7. Ladder (Option)

8. Spotlight (Option)

9. Height adjustable leg

Specification Data

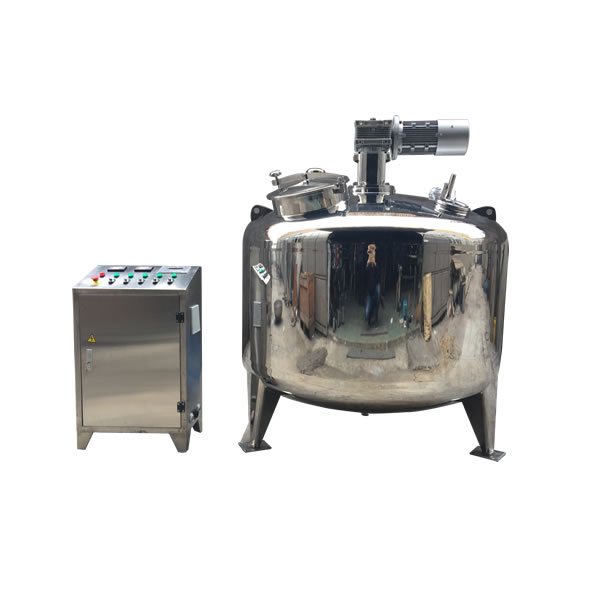

Name	2000L Single Layer Mixing Storage Tank
Volume	2000L
Agitator	1.1KW 110V-450V, 50Hz or 60Hz, 1 Phase or 3 Phase
Agitator Speed	0-215rpm controlled by inverter
Material	Media contact parts SS316L, Media Non-contact parts SS304
Media contact layer	3.0 mm
End Cover Thickness	3.0 mm
Insulation	Polyurethane foam
Tank body type	Cylindrical vertical
End cover Type	Ellipse
Working Pressure	Normal pressure
Inlet and outlet port size	Ø25 Clamp(Thread,Flange available）
Manhole	Ø400 outward open
Leg	3 Pieces
Foot	Height adjustable
Vent Filter	Stainless steel housing with 5 inch PTFE element
Spray ball	Ø25
Inner finishing	Mirror polishing Ra<0.4
Surface finishing	Mirror polishing,Mat or 2B

Drawing as attachment

Single Layer Mixing Storage Tank Table

Capacity	A (mm）	B (mm）	C (mm）	D (mm)	Cover Thickness(mm)	Inner Layer Thkckness (mm)	Port (mm)	Motor Power
300L	700	750	200	1900	2.0	2.0	Ø25	0.37KW
500L	900	1250	200	2500	2.0	2.0	Ø25	0.55KW
1000L	1000	1250	200	2600	2.0	2.0	Ø25	1.1KW
2000L	1280	1500	250	2950	2.0	2.0	Ø25	1.1KW
3000L	1560	1500	250	3150	2.0	2.0	Ø32	1.5KW
4000L	1560	2000	300	3800	2.0	2.0	Ø32	1.5KW
5000L	1760	2000	300	3950	3.0	2.0	Ø38	2.2KW
6000L	1760	2500	300	4450	3.0	2.0	Ø38	2.2KW
8000L	2000	2500	300	4600	3.0	3.0	Ø51	3.0KW
10000L	2200	2500	300	4800	3.0	3.0	Ø51	4.0KW
12000L	2200	3000	300	5300	3.0	3.0	Ø63	5.5KW
15000L	2400	3000	300	5400	3.0	3.0	Ø76	5.5KW
We can manufacture based on customer’s design,or we design according to the actual condition such as room size, material,diameter,height,thickness,heater power and so on.

Application :

1.Water,Fruit Juice,Tea,Syrup Mixing and storage

2.Emulsion,Glue sauce Mixing and storage

3.Cosmetics,Vitamin Mixing and storage

4.Dairy, Beverage,Pharmaceutical liquid solution Mixing and storage

5.Paint,pigment,dyestuff,paper making processing

6.Chemical industrial and biological engineering
