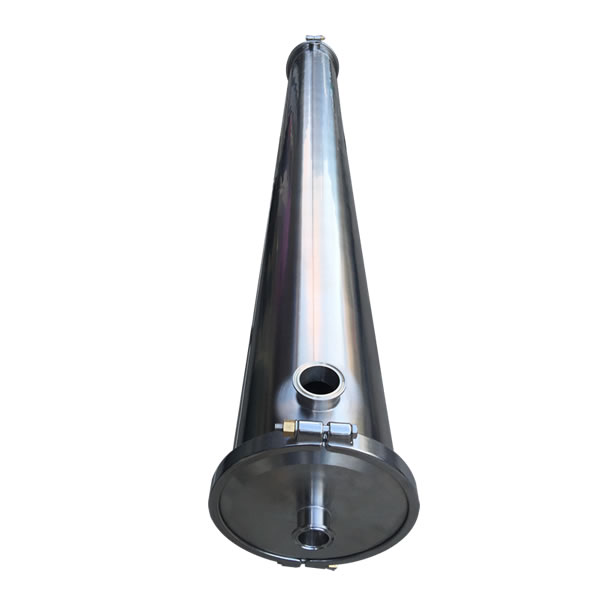

8 Inch 3 element 8040-3 Membrane Housing

Stainless steel sanitary type seamless membrane housing with stainless steel end cap,inner and surface mirror polishing,none dead corner,none crater.

Category : Stainless Steel Membrane Housing
Email : sales@foyowater.com
Phone : +86-0577-86997731
Fax : +86-0577-86997731

Share to:

Description
Inquiry Us

Stainless steel sanitary type seamless membrane housing with stainless steel end cap,inner and surface mirror polishing,none dead corner,none crater.

8 inch housing Ø209X3.0mm,seamless,load standard 8 inch RO,UF,NF membrane,1 to 6 element.

Our membrane housing suitable for DOW,HYDRANAUTICS,GE,TORAY,CSM,VONTRON RO membrane.

End cap and housing connect by high pressure coupling,it is very easy and simple to install,inlet port and concentrate port can be in same side (C Type) or opposite side(Z Type). Port connection type clamp,union,thread or flange for choosing.

Surface finishing : Mirror polishing,Mat polishing.

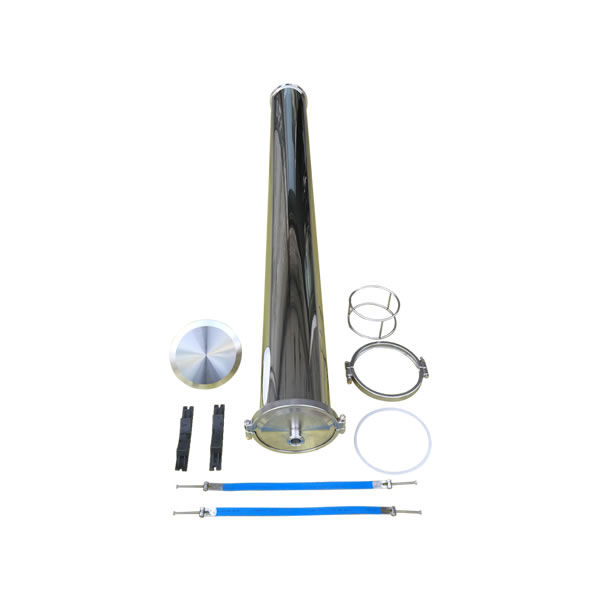

Complete 8 inch membrane housing include : housing 1 piece,end cap 2 pieces, coupling 2 pieces,fixed belt 2 pieces,rubble saddle 2 pieces,O-ring 2 pieces. 2 element to 6 element also include thrust cone

SPECIFICATION DATA

Name	8 inch 3 element stainless steel seamless membrane housing
Model	8040-3
Material	SS 304（316L available）
Housing	Ø209, Cold rolled seamless tube
Thickness	3.0 mm
Design Pressure	300 psi
Size	Ø209X3314mm
Load Membrane Quantity	3 Piece
Inlet and Reject Port	Side Port
Inlet and Reject Port Direction	Same Side 180o（opposite side 180oAvailable）
Inlet Port	Ø38 Clamp
Reject Port	Ø38 Clamp
Sample Port	Ø38 Clamp (Option)
Surface Finishing	Mirror Polish（Mat Available）
Assembly Parts	End Cap 2 Pieces, coupling 2 Pieces, Fixed Belt 2 Pieces, Rubber Saddle 2 Pieces, O-ring 2 Pieces
Suitable for membrane brand	8 Inch, DOW,Hydranautics,Toray,CSM,VONTRON

8 Inch Membrane Housing Data Sheet

No.	Model	Specification	Size	Thickness	Pressure
1	8040-1	8 Inch 1 Element	Ø209X1282	3.0 mm	300 psi
2	8040-2	8 Inch 2 Element	Ø209X2298	3.0 mm	300 psi
3	8040-3	8 Inch 3 Element	Ø209X3314	3.0 mm	300 psi
4	8040-4	8 Inch 4 Element	Ø209X4330	3.0 mm	300 psi
5	8040-5	8 Inch 5 Element	Ø209X5346	3.0 mm	300 psi
6	8040-6	8 Inch 6 Element	Ø209X6362	3.0 mm	300 psi

8 Inch Membrane Housing Drawing

8Inch Membrane Housing Model Selection Table

No.	Model	Description	D1	D2	D3	L	L1	L2	L3	L4
1	8040-1	8 Inch 1 Element	Ø209X3.0mm	Ø32	Ø32	1216	1282	1226	1076	75
2	8040-2	8 Inch 2 Element	Ø209X3.0mm	Ø32	Ø32	2232	2298	2242	2092	75
3	8040-3	8 Inch 3 Element	Ø209X3.0mm	Ø38	Ø38	3248	3314	3258	3108	75
4	8040-4	8 Inch 4 Element	Ø209X3.0mm	Ø38	Ø38	4264	4330	4274	4124	75
5	8040-5	8 Inch 5 Element	Ø209X3.0mm	Ø51	Ø51	5280	5346	5290	5140	75
6	8040-6	8 Inch 6 Element	Ø209X3.0mm	Ø51	Ø51	6296	6362	6306	6156	75

Welcome to our website. If you have any requests or suggestions,please feel free to email us at sales@foyowater.com or use the following enquiry form. Please allow us to provide you with the best service.

8 Inch 3 element 8040-3 Membrane Housing

Category

8 Inch 3 element 8040-3 Membrane Housing

Related Product

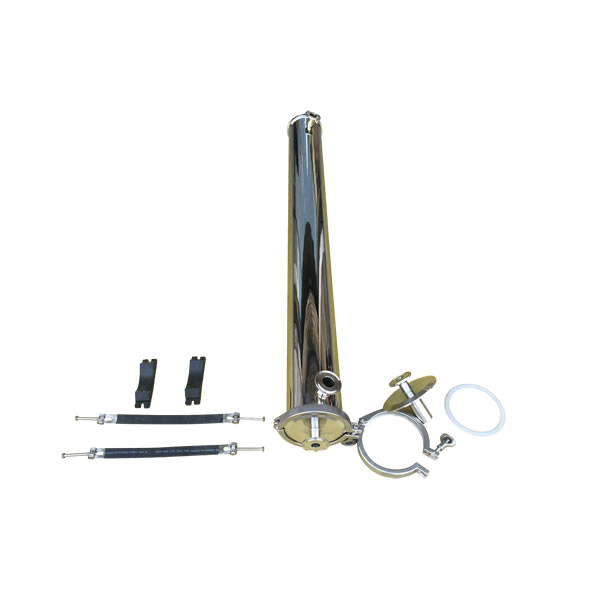

4 Inch 1 element 4040-1 Membrane Housing
