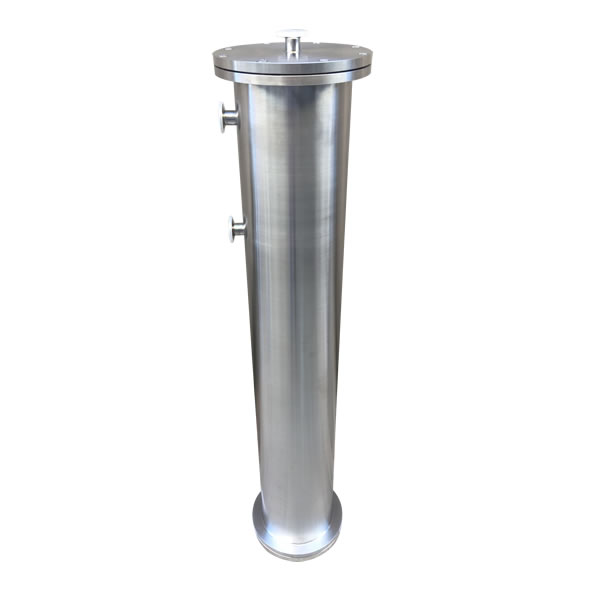

8 Inch 1 element 8040-1 Membrane Housing With Flange End Cap

Stainless steel sanitary type seamless membrane housing with stainless steel end cap,inner and surface mirror polishing,none dead corner,none crater.

Category : Stainless Steel Membrane Housing
Email : [email protected]
Phone : +86-0577-86997731
Fax : +86-0577-86997731

Share to:

Description
Inquiry Us

Stainless steel sanitary type seamless membrane housing with stainless steel end cap,inner and surface mirror polishing,none dead corner,none crater.

8 inch housing Ø209X3.0mm,seamless,load standard 8 inch RO,UF,NF membrane,1 to 6 element.

Our membrane housing suitable for DOW,HYDRANAUTICS,GE,TORAY,CSM,VONTRON RO membrane.

End cap and housing connect by high pressure coupling,it is very easy and simple to install,inlet port and concentrate port can be in same side (C Type) or opposite side(Z Type). Port connection type clamp,union,thread or flange for choosing.

Surface finishing : Mirror polishing,Mat polishing.

Complete 8 inch membrane housing include : housing 1 piece,end cap 2 pieces, coupling 2 pieces,fixed belt 2 pieces,rubble saddle 2 pieces,O-ring 2 pieces. 2 element to 6 element also include thrust cone

SPECIFICATION DATA

Name	8 inch 1 element stainless steel seamless membrane housing
Model	8040-1-F
Material	SS 304（316L available）
Housing	Ø209，Cold rolled seamless tube
Thickness	3.0 mm
Design Pressure	400 psi
Size	Ø209X1310mm
Load Membrane Quantity	1 Piece
Inlet and Reject Port	Side Port
Inlet and Reject Port Direction	Same Side 180o（opposite side 180oAvailable）
Inlet Port	Ø32 Clamp
Reject Port	Ø32 Clamp
Sample Port	Ø32 Clamp (Option)
Surface Finishing	Mirror Polish（Mat Available）
Assembly Parts	End Cap 2 Pieces, coupling 2 Pieces, Fixed Belt 2 Pieces, Rubber Saddle 2 Pieces, O-ring 2 Pieces
Suitable for membrane brand	8 Inch, DOW,Hydranautics,Toray,CSM,VONTRON

Flange End Cap 8 Inch Membrane Housing Data Sheet

No.	Model	Specification	Size	Thickness	Pressure
1	8040-1	8 Inch 1 Element	Ø209X1310	3.0 mm	400 psi
2	8040-2	8 Inch 2 Element	Ø209X2326	3.0 mm	400 psi
3	8040-3	8 Inch 3 Element	Ø209X3342	3.0 mm	400 psi
4	8040-4	8 Inch 4 Element	Ø209X4358	3.0 mm	400 psi
5	8040-5	8 Inch 5 Element	Ø209X5374	3.0 mm	400 psi
6	8040-6	8 Inch 6 Element	Ø209X6390	3.0 mm	400 psi

Flange End Cap 8 Inch Membrane Housing Drawing

Flange End Cap 8 Inch Membrane Housing Model Selection Table

No.	Model	Description	L1	L2	L3	L4	L5	D1	D2	D3
1	8040-1	8 Inch 1 Element	1310	1282	1246	1066	90	Ø209X3.0mm	Ø32	Ø32
2	8040-2	8 Inch 2 Element	2326	2298	2262	2082	90	Ø209X3.0mm	Ø32	Ø32
3	8040-3	8 Inch 3 Element	3342	3314	3278	3098	90	Ø209X3.0mm	Ø38	Ø38
4	8040-4	8 Inch 4 Element	4358	4330	4294	4114	90	Ø209X3.0mm	Ø38	Ø38
5	8040-5	8 Inch 5 Element	5374	5346	5310	5130	90	Ø209X3.0mm	Ø51	Ø51
6	8040-6	8 Inch 6 Element	6390	6362	6326	6146	90	Ø209X3.0mm	Ø51	Ø51
