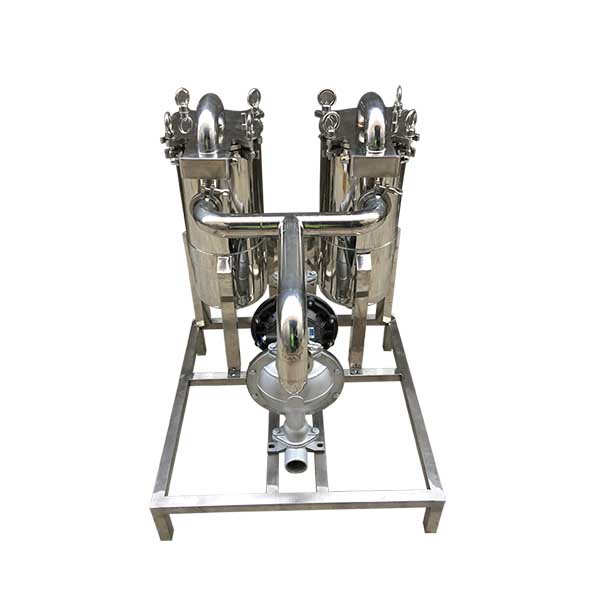

DBF-219-1-T Bag Filtering Unit

Bag filter construct by stainless steel material, install single or multi bag,each bag put into a stainless steel basket,the basket used to support and protect the bag avoid any damage when media feeding.

Category : Filtering Unit
Email : [email protected]
Phone : +86-0577-86997731
Fax : +86-0577-86997731

Share to:

Description
Inquiry Us

According to the filter bag size and capacity, we have 1#,2#,3#,4# series,1# bag size Ø180X410mm, 2# bag size Ø180X810mm,3# bag szie Ø105X230 and 4# bag size Ø105X380mm.Filtering precision from 0.5μm to 300μm,capacity 5T/H to 400T/H, ,bag material PP,NMO,PTFE,Stainless steel available.

Media feeding from side port or top port, product media outlet from side or bottom port,impurity keep inside, and take it out when change the bag. Feed port and outlet port connect type clamp, thread,flange, union available.

Inner and surface finishing can be mirror polishing, mat polishing and sand blasting.All of our welder and polisher have more then 10 years working experience, The filter body weld and polish good without any scar,all corner smooth and shining.

With high Filtration efficiency and big filtering area,easy installation and operating,it is widely used for almost all kinds of liquid media.

The bag filter unit is designed with pump and filter install on the same skid, connect with stainless steel pipe,fitting and valve,booster pump supply pressure to feed liquid media to the filter that precision 0.5-300um, it it widely used for remove suspended substance,silt,turbidity,particulate matter and other impurity.

It is best choose for paint,coating,glue water,diesel oil,lubricating oil and other industrial media filtering,also used for water, juice,beverage and wine filtering.

Technical Parameter

Name	Bag Filter Unit
Pneumatic Diaphragm Pump	QBY3-40, Max. Flow 151lpm,Max. Working Pressure 120psi(0.84MPa
Application	Water,Juice,Tea,Syrup,Beer,Paint coating,Glue water,Paint Coating,Sauce Oil and other liquid media
Filter body Material	SS 304 (316L available)
Vessel Thickness	2.0 mm
Cap & Vessel Fixed Type	Flange with Buckle
Design Pressure	≦1.0MPa
Filter Bag Size	Ø180X410mm
Capacity	Max.20T/Hr（Clean Water @25oC)
Filtering Precision	5μm（0.5-300μm available）
Bag Material	PP（PE,NMO,,PTFE,Stainless Steel available）
Bag Quantity	1 Piece
Inlet & Outlet Size	Ø51 Clamp（Flange, Female Thread,Union available）
Inlet & Outlet direction	Top Inlet and Bottom Outlet
Leg	Detachable for filter height adjustable
Surface Finishing	Mirror Polishing(Mat or Sand Blasting available）
Assembly Parts	Pneumatic Diaphragm Pump,Bag Filter,,Electric cabinet, Interconnecting pipe,Fitting and Valve

See the attachment for drawings

Filter Bag Specification

Model	Size	Volume	Precision	Max. Capacity （Clean Water）	Filtering Area	Material
1#	7”X16” Ø180X410mm	10L	1-300微米	15m3/h	0.25m2	PP,PE,PTFE,NMO,SS
2#	7”X32” Ø180X810mm	20L	1-300微米	30m3/h	0.50m2	PP,PE,PTFE,NMO,SS
3#	4”X9” Ø105X230mm	2.0L	1-300微米	5m3/h	0.08m2	PP,PE,PTFE,NMO,SS
4#	4”X15” Ø105X380mm	3.3L	1-300微米	10m3/h	0.13m2	PP,PE,PTFE,NMO,SS
5#	6”X20” Ø152X520mm	9.4L	1-300微米	12m3/h	0.25m2	PP,PE,PTFE,NMO,SS

Filter Bag Performance

Bag Material	Weal Acid	Strong Acid	Weak Alkali	Strong Alkali	Solventia	Grease	Microorganism	Temperature
Stainless Steel	√√	√	√√	√	√	√	√	200oC
PP	√√	√√	√√	√√	√	√√	√√	85oC
PE	√√√	√√	√√	X	√√	√√√	√√√	130oC
NMO	√	X	√√√	√√√	√√√	√√√	√√√	100oC
PTFE	√√√	√√√	√√√	√√√	√√√	√√√	√√√	-280-230oC
X : NO, Commonly : √, Good : √√, Very Good : √√√,

Bag Filter ( Load Single Bag ) Model Selection Table

Model	Dimension	Max. Capacity （Clean Water）	Filtering Area	Housing Material	Port
BF-219-1	Ø219X830mm	15m3/h	0.25m2	SS304 or SS316L	1 1/2”
BF-219-2	Ø219X1250mm	30m3/h	0.50m2	SS304 or SS316L	2.0”
BF-159-3	Ø159X700mm	5m3/h	0.08m2	SS304 or SS316L	1.0”
BF-159-4	Ø159X800mm	10m3/h	0.13m2	SS304 or SS316L	1.0”
BF-180-5	Ø180X950mm	12m3/h	0.25m2	SS304 or SS316L	1.0”
Housing Thickness, Inlet&Outlet port is available customized Booster pump selection according to filtering media

Bag Filter ( Load Multiple Bag ) Model Selection Table

Model	Dimenison	Housing Thickness	Bag Quantity	Port	Capacity
BF-400-2	Ø400X1630 mm	2.0 mm	2 Pieces	DN80	60 m3/h
BF-450-3	Ø450X1700 mm	2.0 mm	3 Pieces	DN100	90 m3/h
BF-500-4	Ø500X1800 mm	2.0 mm	4 Pieces	DN100	120 m3/h
BF-600-5	Ø600X1850 mm	3.0 mm	5 Pieces	DN125	150 m3/h
BF-600-6	Ø600X1850 mm	3.0 mm	6 Pieces	DN150	180 m3/h
BF-700-8	Ø700x1900 mm	3.0 mm	8 Pieces	DN200	240 m3/h
BF-800-9	Ø800X1950 mm	3.0 mm	9 Pieces	DN200	270 m3/h
BF-900-10	Ø900x2100 mm	3.0 mm	10 Pieces	DN200	300 m3/h
BF-1000-12	Ø1000X2200 mm	3.0 mm	12 Pieces	DN200	360 m3/h
BF-1000-13	Ø1000X2200 mm	3.0 mm	13 Pieces	DN200	390 m3/h
BF-1000-14	Ø1000X2200 mm	3.0 mm	14 Pieces	DN200	420 m3/h
BF-1000-15	Ø1000X2200 mm	3.0 mm	15 Pieces	DN200	450 m3/h
BF-1100-16	Ø1100X2400 mm	3.0 mm	16 Pieces	DN200	480 m3/h
BF-1200-18	Ø1200X2500 mm	4.0 mm	18 Pieces	DN200	540 m3/h
Housing Thickness, Inlet&Outlet port is available customized Booster Pump selection according to filtering media

(1)Food and beverage industrial: Edible oil,Syrup,Tea,wine,pure water,mineralwater,bear,milk,juice vinegar and soy sauce.

(2)Water treatment system : As pre-filter of RO system,cooling water,oil field water,drilling fluid, ion exchange resin,understand water,river water,lake water,swage water and waster water filtering.

(3) Chemical : Catalyst recovery, graphene filtering,liquid ammonia,Hydrocarbon etc.

(4) Adhesive : Gluewater, acroleic acid agglomerant gelatin removal,coagulum hot-melt polymer Removal.

(5)Lubricating oil : Diesel oil,Petrol,Kerosene and Hydraulic oil filtering,Lubricating oil filtration before package.

Welcome to our website. If you have any requests or suggestions,please feel free to email us at [email protected] or use the following enquiry form. Please allow us to provide you with the best service.

DBF-219-1-T Bag Filtering Unit

Category

DBF-219-1-T Bag Filtering Unit

Related Product

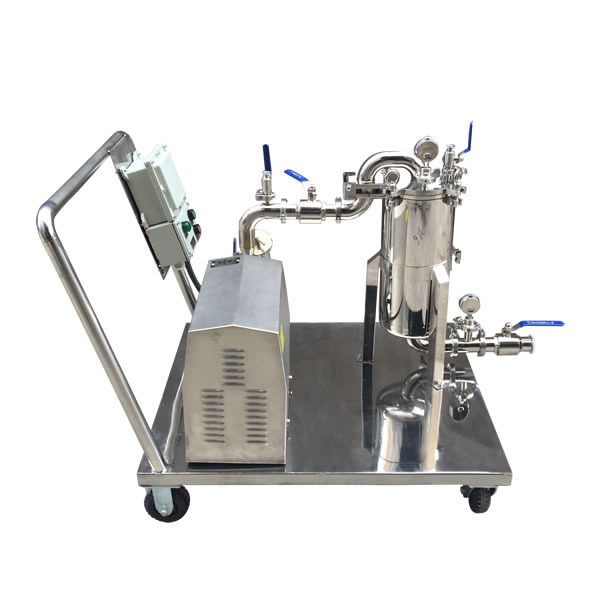

BF-219-1-T Bag Filtering Unit

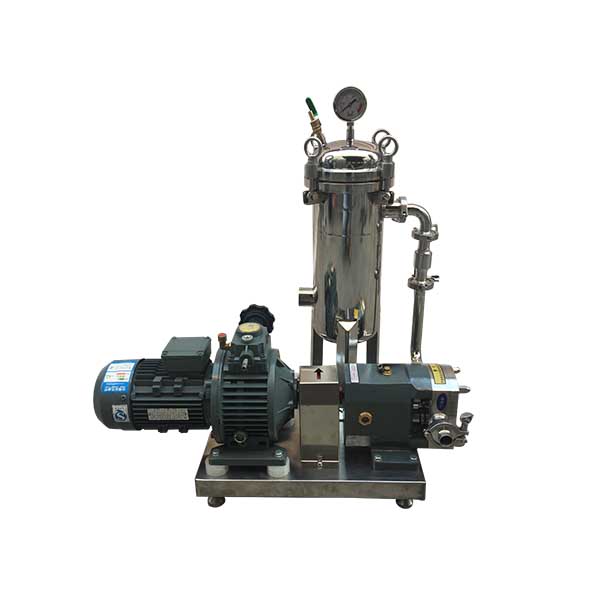

BF-159-4-B Bag Filtering Unit
