Description:

Water treatment is any process that improves the quality of water to make it more acceptable for a specific end-use. The end use may be drinking,pharmaceuticalwater supply,WFI water, irrigation, river flow maintenance, water recreation or many other uses, including being safely returned to the environment. Water treatment removes contaminants and undesirable components, or reduces their concentration so that the water becomes fit for its desired end-use.

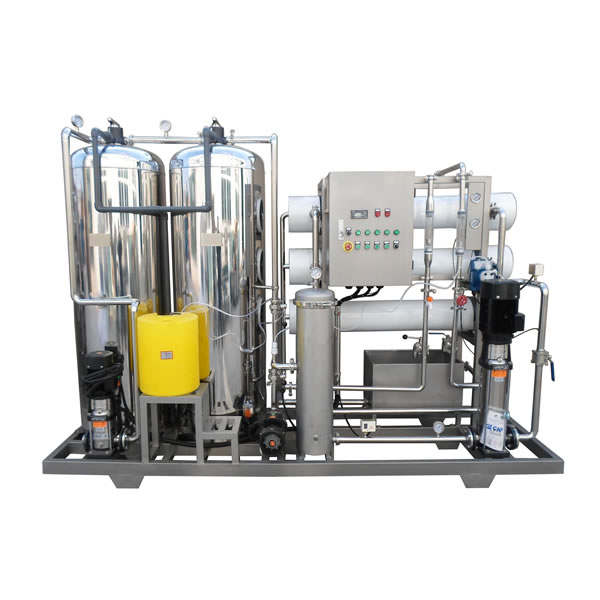

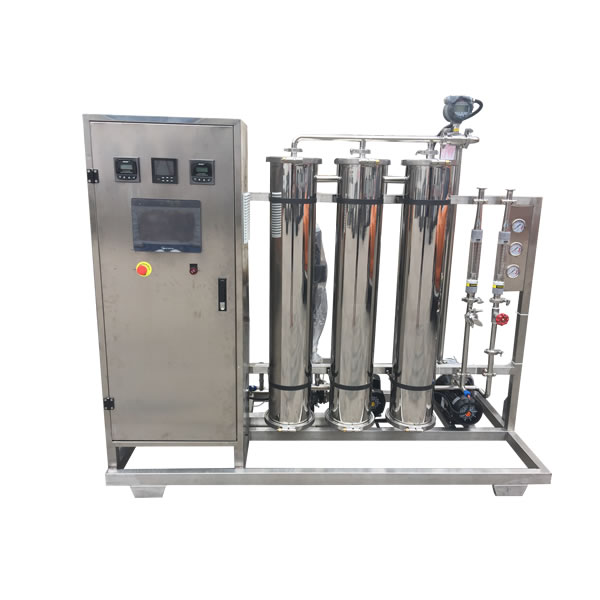

Single Stage RO system is that remove almost ion,salt,minerals from the raw water, there is not any organic,inorganic substance,impurity in the water,treated water is pure water. Quality meet WHO drinking water standard.

Luxury Design: Stainless steel filter housing and stainless steel pipe

Economic Design: FRP filter housing and UPVC pipe.

Complete SystemInclude Pre-treatment, RO Unit, Post-treatment, Electric control system Pre-treatmentIncludeRaw Water Tank, Raw Water Pump, Multi-Media Filter,Activated Carbon Filter,Softener, Chemical Dosing device, pH adjustable device RO UnitInclude Cartridge Filter,High Pressure Pump, RO membrane, RO membrane Housing, Pressure Gauge, Flow Meter, Pipe&Fitting&Valve, Skid, Membrane Chemical Washing Device Post-treatmentInclude Purified Water Tank, Purified Water Pump, UV Sterilizer Electric Control SystemPLC programmable, Conductivity Meter, pH Meter, Level Switch, Pressure Switch, Alarm, Indicator, Electric Parts

FLOW DIAGRAM DRAWING : Drawing as attachment

P&ID DRAWING : Drawing as attachment

Technical Parameter

Pure Water RO System Characteristics

1.Reasonable design and reasonable interconnect piping,low power consumption,Compact structure,save installation space.easily disassembly and change consumption Parts, and easy for cleaning.

2.Pipe inner is smooth,no dead corner,easy for washing and sanitization, all the parts rust protection.

3. Only use high quality pump and RO membrane such as Grundfos, CNP pump, DOW,Hydranautics membrane,high desalination rate and high flow capacity, low consumption.

4. SIEMENS PLC programmable,according to the actual system design, make program to control complete system, data logger record running data, connect to computer and print out. User can check it any time.

5. Electric cabinet install blower and dust strainer,keep the electric parts working in clean and cool space,make sure the system working smooth without error.All the wire marked by number, it is easy to find out the fault if there is something wrong. Once it has, alert will start on the control panel, operator can shut off power supply quickly by push the emergency button.

6. Purified water loop system use SS316L high quality sanitary pipe and fitting, can be sanitization by hot water,O3and H2O2.

Purify Water System RO UnitApplication

1.Hotel, Factory, Business building,Community,Villa Direct drinking water,

2.Food, Milk, Dairy,Win, Processing water.

3.Bag Water, Pouch Water, Scahet Water, Bottle water,Barreled water line

4.Boiler water,chemical,painting, pharmaceutical processing water.

5.Cosmetics,Perfume,Toothpaste,Wipes,Facial mask,processing water.

6.Detergent,Laundry detergent,Hand sanitizer,Shampoo, Bath Cream,hair dyeprocessing water.
